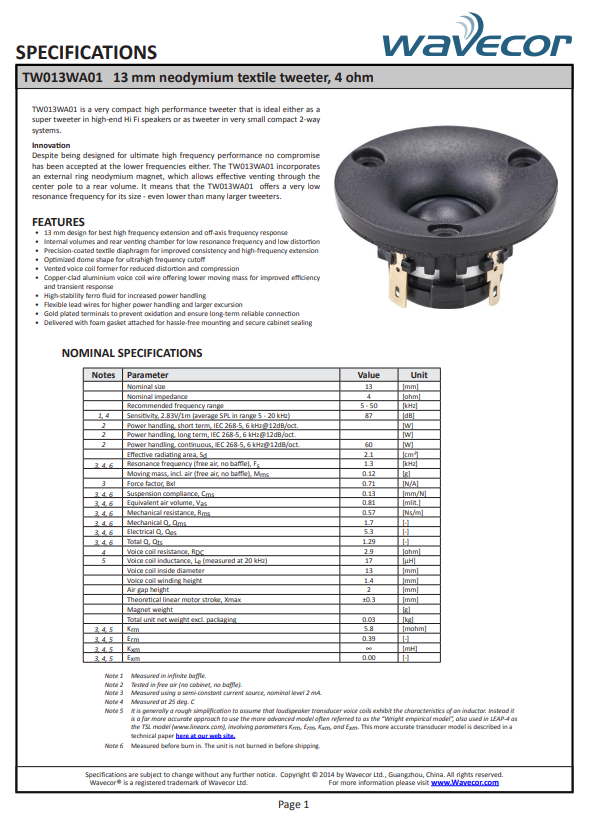

Wavecor TW013WA01 13mm Textile Dome Neodymium Tweeter with Rear Chamber

The Wavecor TW013WA01 is a 13 mm textile dome tweeter that is designed for compact installations. The TW013WA01 is an excellent choice for any project requiring high frequency reproduction in a very compact space.
The TW013WA01, though designed for exquisite high frequency reproduction, offers little compromise when reproducing low frequencies. The optimized textile dome ensures wide dispersion and low distortion. Distortion is further reduced by efficient venting of the chassis and voice coil former.
Product Details
Brand
Wavecor
Model
TW013WA01


UPC
848864054483
Unit of Measure
Each
Weight
0.07
Product Specifications
Cone / Dome Diameter
0.5"
Cutout Diameter
1.24
Tweeter Type
Soft Dome
Power Handling (RMS)
60 Watts
Impedance
4Ω
Frequency Response
5,000 to 40,000Hz
Sensitivity
87dB 2.83V/1m
Thiele-Small Parameters
Resonant Frequency (Fs)
1300Hz
Voice Coil Inductance (Le)
0.017mH
Mechanical Q (Qms)
1.7
Electromagnetic Q (Qes)
5.3
Total Q (Qts)
1.29
Mounting Information
Overall Outside Diameter
1.77"
Depth
0.89"
